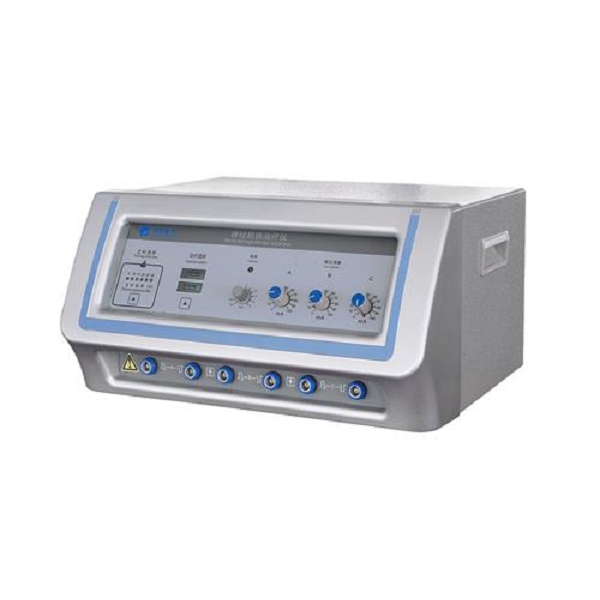

Medical Muscle Stimulator physical therapy equipment
Medical muscle stimulator physiotherapy equipment is widely used in rehabilitation center, clinic and hospital, it is used for therapy.
Medical muscle stimulator physical rehabilitation equipment
muscle stimulator rehabilitation Product introduction
Neuromuscular Electrical Stimulation Device (NES) applies the low-frequency pulse current to stimulate the muscle to make it contracted, so as to recover the movement function. NMES has been in the clinical application for more than 100 years, and in recent years, the application of NMES has been significantly increased in the rehabilitation of neuromuscular and skeletal diseases.
muscle stimulator rehabilitation Principle
Neuromuscular Electrical Stimulation Device (NES) applies the low-frequency pulse current to stimulate the denervated muscles, to reduce the muscular fibrosis, to slow down the muscular denervated atrophy, to promote the blood flow and keep the muscular nutrition, and to promote the strengthening of denervated muscles and re-innervated muscle fibers to rapidly increase the muscle tension.
|Power supply||220V±22V 50Hz±1Hz|
|Pulse frequency||500Hz; 0.5Hz-5Hz|
|Pulse width||5*1ms; 10ms|
|current effective value||≤80mA|
|Output waveform||Two-way unsymmetric(al) square wave|
|Output||Three pulse output|
a) Three channels pulse output, available for treatment of three patients or three sites, independently adjustable in the stimulation intensity;
b) Output waveform: bi-directional asymmetric square wave;
c) Continuously adjustable in the output current peak of each way of therapeutic apparatus;
d) Adjustable in the pulse frequency by two levels, targeted at different diseases, free to select, more efficient in treatment;
e) Treatment time can be fixed at 5min, 10min, 15min, 20min, 25min and 30min at will.
1.How to deliver products to you?
If order large amount products, by sea is the best way, tell us the seaport name, then we will tell you sea freight.
If order several products, by air is the best way, tell us the airport name, then we will tell you air freight.
If order one small product, by express is the best way, tell us your door address, then we will tell you freight.
2.How to install our products?
If meeting problems during installation, we will take install video to help you, so please do not worry about it.
3-15 days, it based on the purchasing amount.
3.How to visit our factory?
Our factory is located in Changzhou city, jiangsu province, you can fly to Shanghai HongQiao airport, then take train to Changzhou city, or you can fly to Changzhou Benniu International Airport, then we will pick up you.
4.What’s the warranty of our products?
All of our products have 1 year warranty, during 1 year we will deliver replaced parts to you freely, out of 1 year, we will still supply replaced parts to you.
5.Payment terms and ways
We accept bank transfer, Western Union for payment
Small order: 100% payment before production
Large order: 50% advance payment before production, 50% balance payment before delivery.
TOPMED Physio Rehab Co.,Ltd is the leader for rehabilitation equipment and physical therapy products in China market. Quality is our principle, good quality, good service to our customers.
TOPMED specializes in the production of walking rehabilitation equipment, upper limb rehabilitation equipment, lower limb rehabilitation equipment, occupational therapy rehabilitation equipment, children rehabilitation equipment and physical therapy products. Products are widely used in rehabilitation center, hospital and clinic.
